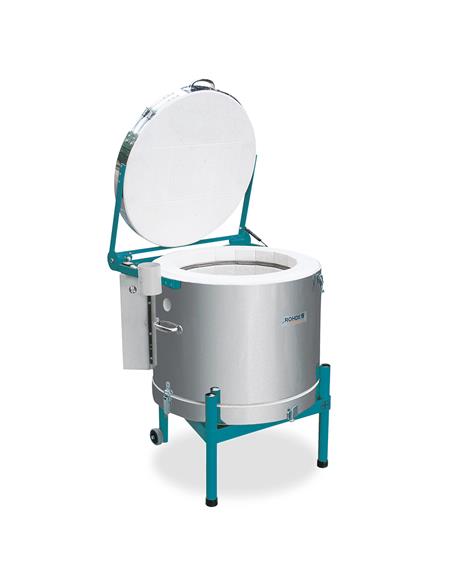

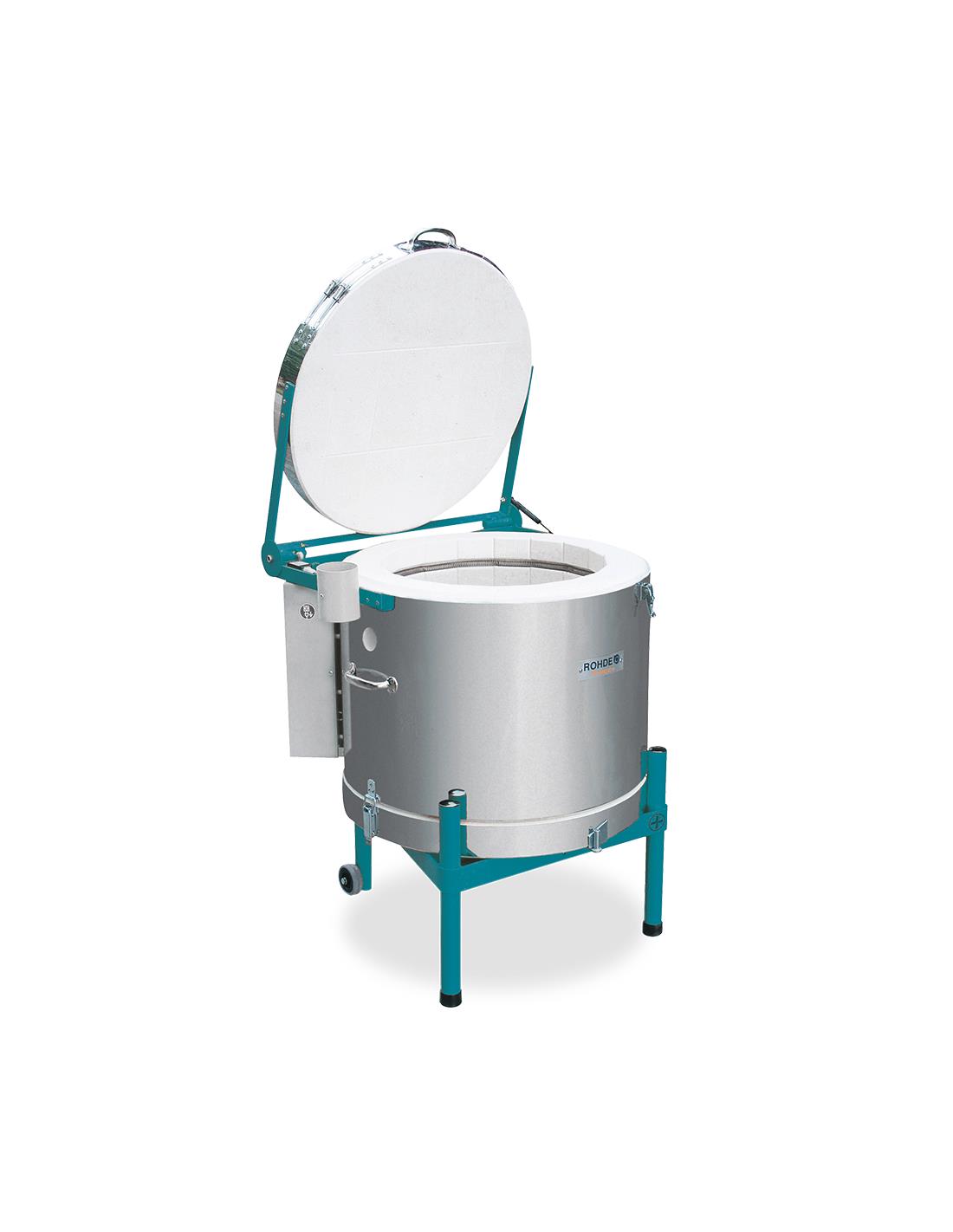

TE 100 MCC 1250ºC Kiln

The Rohde TE 100 MCC is a top-loading kiln designed for ceramists, workshops and educational centers that require greater capacity without compromising reliability and precision. With a volume of 100 litres, it provides a spacious and comfortable working area, ideal for medium-scale production and larger pieces.

This model reaches a maximum temperature of 1250 °C and is designed for continuous operation up to 1220 °C, making it ideal for bisque firing, earthenware, overglaze decoration and a wide range of ceramic applications. Its broad temperature range also makes it an excellent choice for glass work, offering flexibility for studios combining different techniques.

The TE 100 MCC features all-around heating with elements integrated into the refractory brick, ensuring even heat distribution and enhanced protection of the heating elements. Its double-layer insulation improves thermal efficiency and firing stability. It also comes equipped with the ST 310 controller as standard, allowing precise programming and intuitive operation.

One of its key advantages is its expandability: this model can be extended with an additional heating ring, increasing the usable volume up to approximately 150 litres, making it adaptable to future production needs without replacing the kiln.

Specifications:

• Capacity: 100 L
• Maximum temperature: 1250 °C
• Continuous operating temperature: 1220 °C
• Internal dimensions: Ø 520 × 460 mm
• External dimensions: 800 × 800 × 780 mm
• Power: 7.0 kW
• Current: 15 A
• Voltage: 3/N/PE 400V AC
• Connection: CEE 16 A
• Weight: 89 kg
• Insulation: double layer
• Heating: all-around
• Heating elements: integrated in brick
• Controller: ST 310
