Horno ELS 200 S 1320ºC

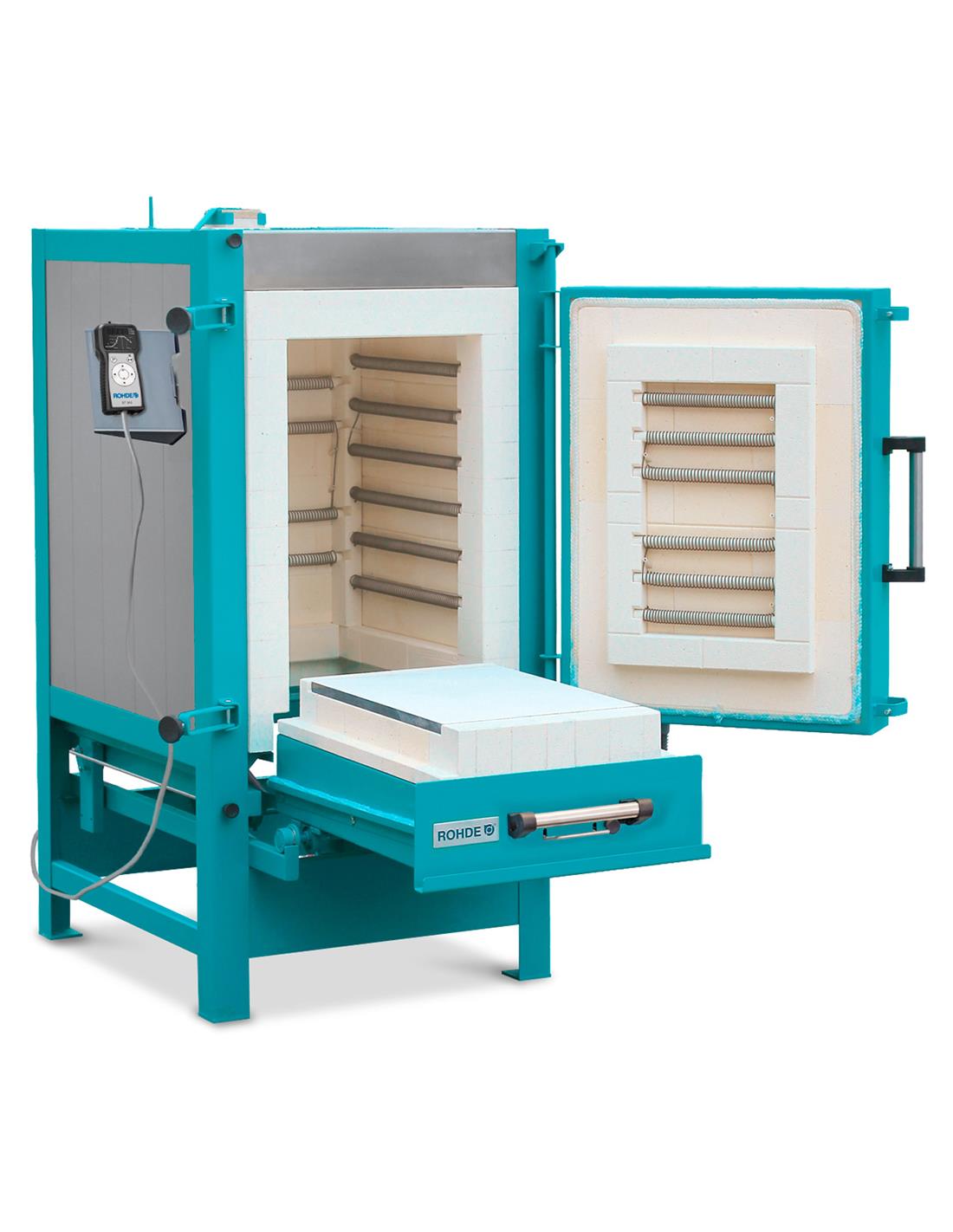

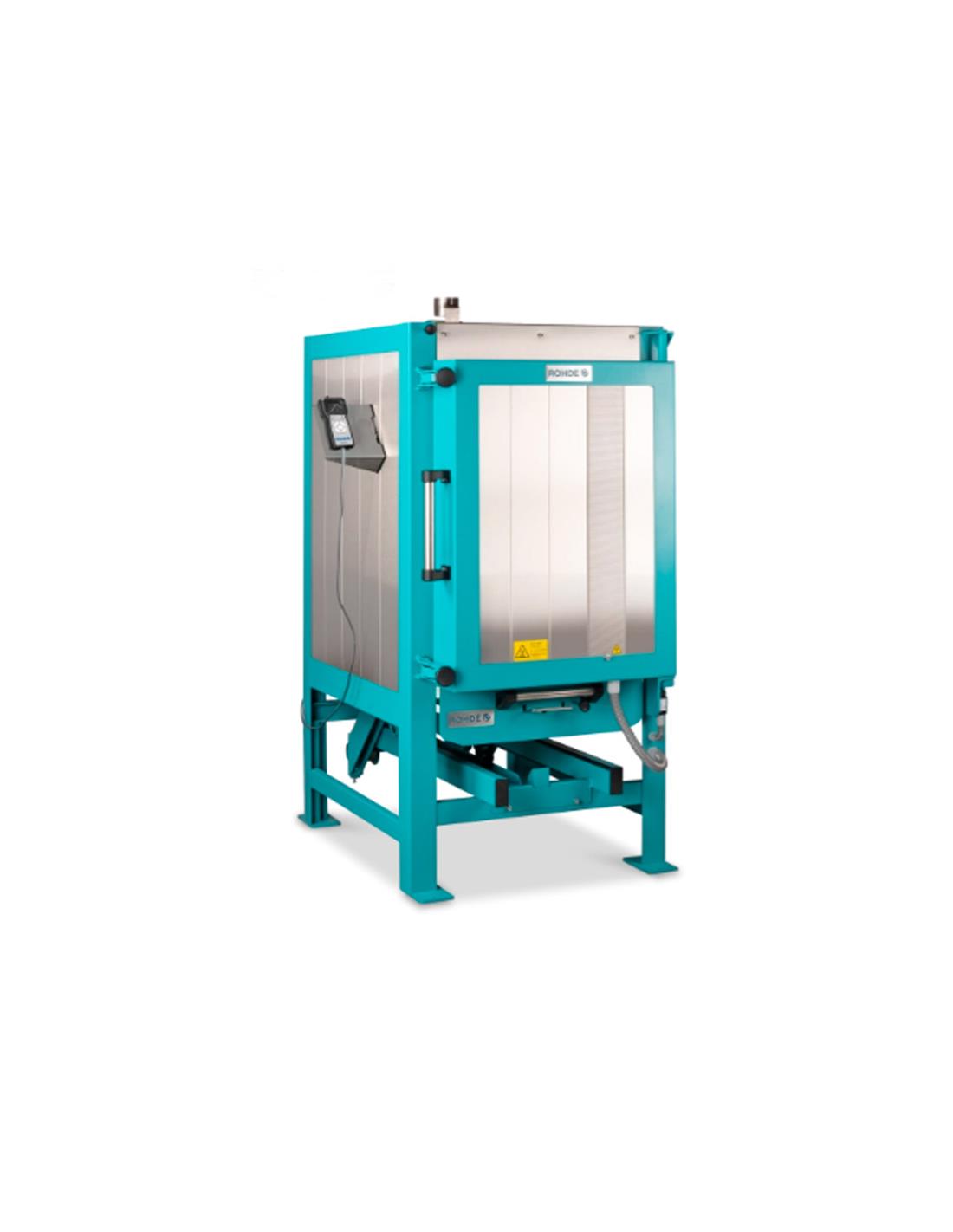

The ELS 200 S Chamber Kiln with Ergo Load System has a volume of 200 litres and belongs to the ELS-S series, designed for firing temperatures up to 1320°C.

ROHDE Chamber Kilns with Ergo Load System from the ELS-S series comprise eight different models with kiln volumes ranging from 150 to 1200 litres. These kilns are built for long-term professional use and offer a reliable solution for both workshops and schools. The heating elements are mounted on support rods, while the 5-side heating system ensures even temperature distribution across all performance levels.

The frontloaders in this series are designed for daily use over many years, even under intensive professional conditions. They meet the highest standards for everyday applications and continuous operation.

Key Features of the ELS-S Series

   • 5-side heating for uniform heat distribution.
   • Heating elements mounted on support rods for stability and durability.
   • Stainless steel in-frame ventilation ensures low external temperatures and protects against corrosion.
   • 3-layer insulation structure for excellent energy efficiency.
   • ROHDE R-SiC ceiling support system prevents cracks and particles from falling onto the ware.
   • Comfort Stop with hydropneumatic dampers that gently brake the car shortly before reaching the stop position.
   • Automatic braking function locks the kiln floor safely in any position.

Technical Details

Temperature Performance:

   • Maximum temperature (Tmax): 1320°C
   • Long-term working temperature (Tanw): 1290°C

Energy Specifications:

   • Energy type: Electrical
   • Power: 13.2 kW
   • Supply: 20 A
   • Voltage: 3/N/PE 400V AC
   • Connection: CEE 32 A

Dimensions:

   • Volume: 200 litres
   • Internal dimensions (W × D × H): 460 × 620 × 680 mm
   • External dimensions (W × D × H): 800 × 1250 × 1670 mm
   • Weight: 550 kg

Equipment:

   • Insulation: 3-layer
   • Heating: 5-side
   • Heating elements: Support rods
   • Control: ST 310

Advanced Features

   • Long-term application temperature 1290°C:
     Designed for continuous use, making it ideal for bisque, earthenware, stoneware, and soft paste porcelain firings (Seger Cone 8 / Orton Cone 9).

   • Confirmed application temperature:
     Precise calculation and quality heating elements ensure accurate and stable firing temperatures with minimal heat loss.

   • Cognitive connectivity with ROHDE myKiln App:
     Connect and control your kiln digitally using the included controller for an enhanced firing experience.

   • Power supply through “CEE 32 A 5-Pol.” plug connection:
     Enables quick and safe connection for kilns with outputs of up to 22 kW.

   • High-quality heating elements:
     Made with Kanthal A1 for durability, reliability, and efficient heat transfer.

   • Ergo Load System (ELS):
     Designed for ergonomic, back-friendly loading with hydropneumatic dampers for safe, smooth operation.

   • Careful door sealing:
     Flexible insulating cord prevents thermal energy loss and enhances efficiency.

   • Air supply slide:
     Regulates airflow for optimized cooling and moisture removal, manually or automatically with a servomotor.

   • Exhaust air flap handle:
     Precisely controls exhaust gases and cooling, with optional automation.

   • Easy-to-maintain switchgear:
     Located at the back of the kiln for easy access and maintenance.

This kiln is perfect for professional ceramic studios, schools, and workshops seeking reliable performance, energy efficiency, and user-friendly operation at the highest technical level.
