SIO-2 PA/CHF grogged white 0-0.5mm 12.5kg

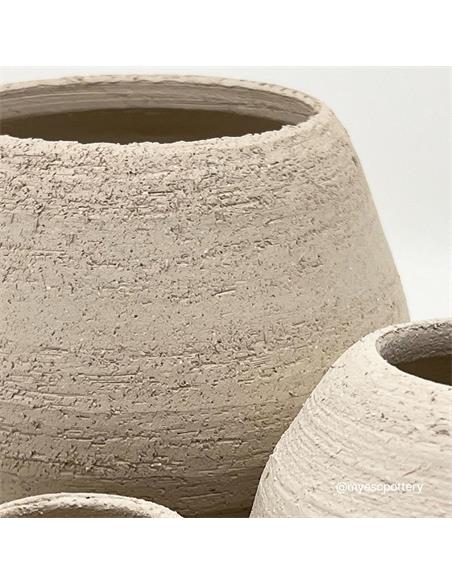

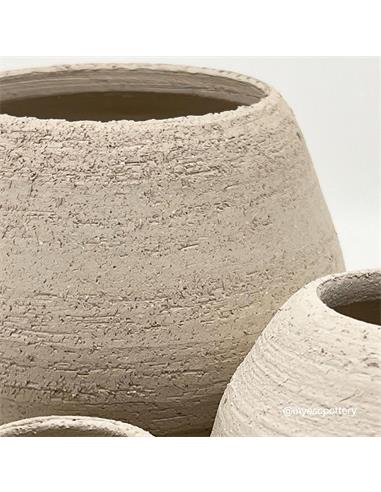

White earthenware clay with 20 % fine grog 0-0.5 mm (up to 35 Mesh). Ideal for medium size pieces. The presence of grog confers to clay a very interesting textured surface (not flat) which, in turn, provides a set of suitable properties for the design of pieces in complex drying situations, thus avoiding the creation of deformations and cracks. Available in extruded body (moist form), being suitable for shaping and modelling.

Firing range* (biscuit): 1050-1080 ºC / Cone 04-03
Water content (throwing): 17 %
Plasticity (IP Atterberg): 12
Carbonate content (CaCO3): 13 %
Drying shrinkage: 5.6 %
Firing shrinkage 1050 ºC: -0.1 %
Porosity (water absorption) 1050 ºC: 11.2 %
Dry bending strength: 3.7 N/mm2
Fired bending strength 1050 ºC: 21.0 N/mm2
Thermal coefficient 1050 ºC (25-500 ºC): 68.1x10^-7 ºC^-1

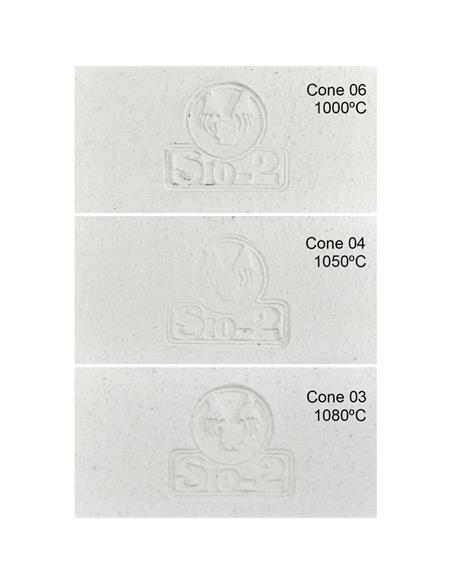

(*) Firing range recommended for the clay to develop its best performance, both in terms of technical and safety characteristics, under conventional firing conditions. The colour samples may show temperatures outside the recommended range to provide a broader view, but these are pieces fired under controlled conditions. Cone equivalence according to Orton table for self-supporting cones, regular-SSB and  60 ºC/hr heating rate.
